Friday, September 30, 2011

Office partition with aluminium frame and clear glass panel








Every activity is open and visible in this organization. There are no  vertical or roller blinds being used between the glass partition wall among the executives.

The way the partition rooms are built in this office makes the whole place bright and spacious.

Everybody sees what everybody else is doing and nobody wants to do what the rest are not doing! The buzz in the office can be easily spread!



Wednesday, September 28, 2011

Tempered glass door - the common problems of tempered glass door





1.0 Most of the problems on tempered glass door are caused by the floor closer. We used to get calls and emails from factories in our areas of service like Petaling Jaya, Subang Jaya, Shah Alam, Klang and Port Klang regarding tempered glass door giving problems!


2.0 What are the common problems of tempered glass door?

2.1 The door cannot shut at all.

2.2 The door takes ages to shut.

2.3 The door shut too fast ; there is no control in shutting ; it flings.

2.4 The floor closer is giving out squeaky sound when it closes.

2.5 The tempered glass door leaf sinks and touches the floor.


3.0 What caused the above problems?

3.1 Wear and tear - the floor closer exceeding the life span ( exceeding the set number of times utilisation ).

3.2 Not properly maintained - water being clogged in the casing.

3.3 Subjected to excessive or abusive usage - like not letting the door shut by itself.

3.4 Not being installed according to standard procedures.

3.5 The capacity of the floor closer and the door size do not match.


4.0 When properly installed and under normal usage and surrounding conditions, floor closer by VVP, DORMA, KWF-TEC, USAF will not get spoilt easily. They come with warranty period.

5.0 We don't do tempered glass door / floor closer repair : if it's under warranty period, customer will get a replacement for the faulty set ; if it has reached it's life span, customer needs to change for a new set.

6.0 When the pivot of the floor closer shows sign of oily patch and spreads to the cover of the casing, it is the sign that the floor closer is about to give problem.



Monday, September 26, 2011

Suspended ceiling - definition






1.0 Drop ceiling and false ceiling are sometimes used to refer to suspended ceiling. The commonly named suspended ceiling in Selangor, Malaysia is also being called 2'0" x 4'0" ceiling by most of the renovation contractors here.

2.0 Suspended ceiling is hung from the ceiling joists with metal grid. The grid comes in the shape of a T which snaps together to form squares of 2'0" x 2'0" or rectangles of 2'0" x 4'0" which will be covered by the various type and grade of ceiling boards or ceiling tiles.

3.0 Due to the way the suspended ceiling is being constructed. it's inherently easy to repair and replace the ceiling boards / tiles as it can be easily removed from the metal grid or ceiling T.

4.0 Why are suspended ceiling so popular in offices and factories in this part of Selangor like Shah Alam, Subang Jaya, Petaling Jaya, Port Klang and Klang?

4.1 Easy to construct and cost efficient.
4.2 Easy to maintain and dismantle / replace.
4.3 Reduce heat, humidity, noise.
4.4 Fire, air pollutant resistant.
4.5 Hide unsightly wiring, cabling, duct work.



Thursday, September 22, 2011

Tempered glass door - one side opening









Tempered glass door on floor closer opens in two directions.


1.When electro magnetic lock is used on the tempered glass door, then it only opens in one direction.

2. A door stopper is also used when the tempered glass door is required to be opened in one specific direction.



Tuesday, September 20, 2011

Gypsum board partition - standard nyatoh ply door





Half glass nyatoh ply door with door closer

Full nyatoh ply door with door closer


Nyatoh ply door is very commonly used for partitioned offices constructed with gypsum plaster board in this part of Selangor i.e Klang, Shah Alam, Subang and Petaling Jaya.



Monday, September 12, 2011

Tempered glass sliding door





Installation diagram of tempered glass sliding door

Tempered glass sliding door system (1)

Tempered glass sliding door system (2)




Tempered glass sliding door with suspension and trackless system. Some renovation contractor and interior designer called it " hanging tempered glass sliding door "



Saturday, September 10, 2011

Tempered glass door repair and replacement of accessories






We also provide the following services that are related to tempered glass door and fixed panel / partition :


1. Replacement of faulty floor hinge ( commonly called a floor closer in Klang Valley, Selangor, Malaysia ) for the brands like DORMA and VVP.

2. Replacement of stainless steel glass door handle and faulty patch fittings for glass door and partition

3. Replacement of broken tempered glass door and partition.





Friday, September 9, 2011

The composition of a tempered glass door - details of glass door components









VVP Floor Hinge / Closer


DORMA Floor Hinge / Closer

 Tempered glass door installation dimension / diagram

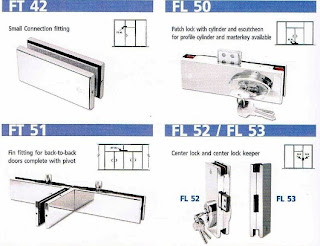

 Accessories for tempered glass door

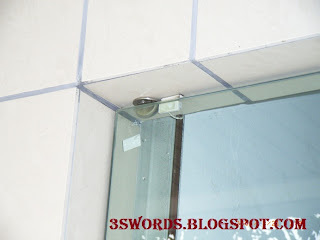

 Patch fitting for tempered glass door and partition

 Patch fittings for tempered glass door and partition

 Stainless steel handle for tempered glass door



Tempered glass panel partition with glass door come with complete patch fitting and floor closer for a showroom or shop front / main entrance of offices and commercial buildings.




Thursday, September 8, 2011

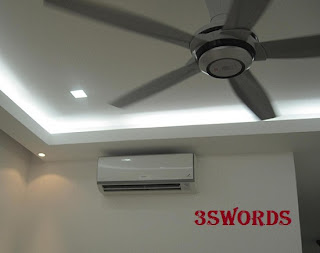

Plaster ceiling on galvanised metal or timber suspension system













Plaster ceiling for offices, showrooms and residences.


1. Boards used to fix onto the suspension ceiling system are fiberglass board and gypsum plaster board.

2. The construction of plaster ceiling will have the whole board screwed onto suspension structure. The joints between the boards and holes by the screw will be patched up with a special joint compound. The finishing of plaster ceiling is smooth without the ceiling tee and angle being exposed.

3. For areas which are exposed to high moisture, moisture resistant plaster board should be used instead of the normal board.



Aluminium strip ceiling / OM ceiling










Aluminium strip ceiling is commonly used in banks, commercial buildings and corporate offices.

It comes in various colours ; silver and champagne gold are among the popular colours.

It is easy to maintain as it is rust and water proof.




Wednesday, September 7, 2011

Details of suspended ceiling system with gypsum plaster ceiling board and gypsum ceiling board











Suspended ceiling for offices, meeting rooms and showrooms :


1. The main features of a suspended ceiling system are the main tee, cross tee and wall angle.

2. The standard size of ceiling board for a suspended ceiling is 2'0" x 4'0".

3. There are many types of ceiling boards in the Klang Valley, Selangor which can be used for a suspended ceiling :

- gypsum "pinhole" ceiling board.
- gypsum "sakura" ceiling board.
- plaster ceiling board as per photo number 4 attached.
- mineral fibre ceiling board



Tuesday, September 6, 2011

Modern office partition










Modern office partition from aluminium frame and glass panel



1. This type of modern office partition system is popular with those who have bigger budget for their renovation.

2. The aluminium frame can be powder coated in the colours to match the interior office colour theme. And some may prefer it in it's off-the-shelf colour such as natural anodised which look like silver colour or medium bronze anodised which is the common type in Selangor, Malaysia.

3. Clear float glass and tempered glass is very popular in the modern office concept. Besides the brightness to the office environment, the glass also give an atmosphere of openness and visibility among the colleagues of the organisation.

4. Glass with sandblast is used as touch of design and privacy as shown in photo number 4.



Monday, September 5, 2011

Details of gypsum board partition system













1. Gypsum board partition is used in workplaces for constructing office, meeting room and guest room. It is very popular with renovation contractors here in Selangor, Malaysia.

2. Gypsum board for partition comes in plain and PVC laminated finishing. In plain finishing, the customer can choose the colours of his choice for the wall ; in PVC laminated finishing, the customer can choose from the range of patterns available. The main advantage of the PVC laminated board over the plain board is the free maintenance of the former : grease and stain on the surface of the board can be easily wiped off.

3. Gypsum board of the standard type is commonly used in the construction of offices and showrooms. Where it is required as safety feature by certain factories, gypsum board of water resistant and extra fire resistant board can be used in the construction of the rooms.

4. Rockwool slab or in roll form can be used in the construction of the offices or meeting rooms if sound insulation is desired.

5. Glass on the partition wall is added for brightness and to make the room appears bigger.

6.Gypsum board partition is constructed with  metal stud being covered by two pieces of board on either side. Electrical and networking cables and wiring are concealed in between the boards. In this way, the work of wiring is made much easier and faster without the hacking on the wall.
